Product image represents this series. Appearance may vary by model or specification.

Star USA

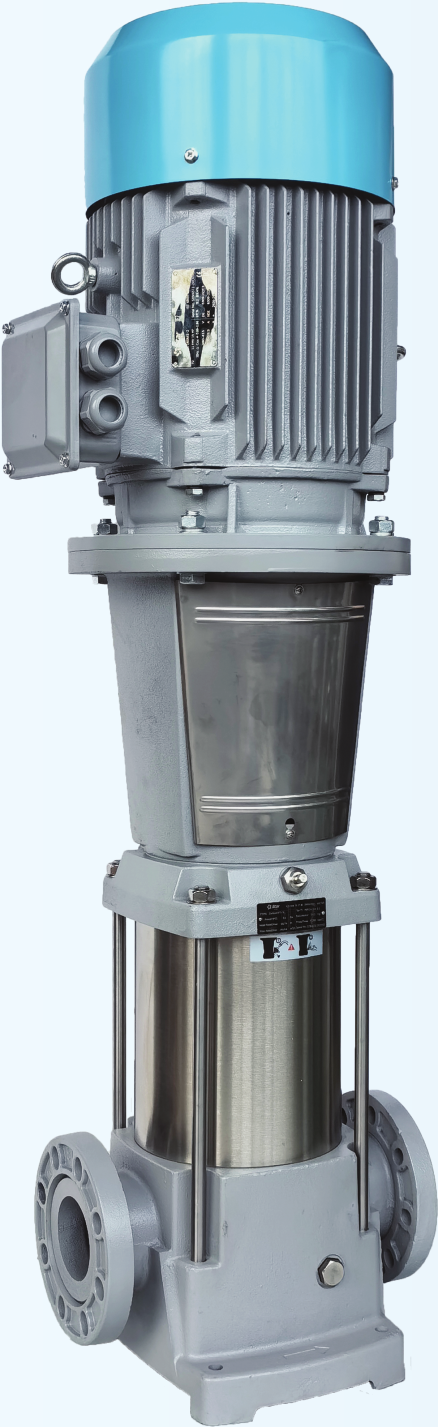

Star USA Vertical Multistage Pump

Voltage: 380V, 3 Phase. Frequency: 50 Hz. RPM: 2900.

Available Models / Specifications

Model Number	Connection (inch)	Frequency	HP	Max Discharge (m3/hr)	Max Head (m)	RPM	Stage	Voltage	kW
SVM3T10	1 x 1	50 Hz	1	4	61	2900	10	380V, 3 Phase	0.75
SVM3T15	1 x 1	50 Hz	1.5	4	90	2900	15	380V, 3 Phase	1.1
SVM3T19	1 x 1	50 Hz	2	4	115	2900	19	380V, 3 Phase	1.5
SVM3T29	1 x 1	50 Hz	3	4	175	2900	29	380V, 3 Phase	2.2
SVM5T12	1.25 x 1.25	50 Hz	3	8	74	2900	12	380V, 3 Phase	2.2
SVM5T16	1.25 x 1.25	50 Hz	4	8	99	2900	16	380V, 3 Phase	3
SVM5T29	1.25 x 1.25	50 Hz	5.5	8	181	2900	29	380V, 3 Phase	4
SVM10T6	1.5 x 1.5	50 Hz	3	13	60	2900	6	380V, 3 Phase	2.2
SVM10T12	1.5 x 1.5	50 Hz	5.5	13	120	2900	12	380V, 3 Phase	4
SVM10T16	1.5 x 1.5	50 Hz	7.5	13	160	2900	16	380V, 3 Phase	5.5
SVM10T22	1.5 x 1.5	50 Hz	10	13	220	2900	22	380V, 3 Phase	7.5
SVM15T5	2 x 2	50 Hz	5.5	22	65	2900	5	380V, 3 Phase	4
SVM15T7	2 x 2	50 Hz	7.5	22	92	2900	7	380V, 3 Phase	5.5
SVM15T9	2 x 2	50 Hz	10	22	120	2900	9	380V, 3 Phase	7.5
SVM15T14	2 x 2	50 Hz	15	22	187	2900	14	380V, 3 Phase	11
SVM15T17	2 x 2	50 Hz	20	22	227	2900	17	380V, 3 Phase	15
SVM20T5	2 x 2	50 Hz	7.5	28	67	2900	5	380V, 3 Phase	5.5
SVM20T7	2 x 2	50 Hz	10	28	95	2900	7	380V, 3 Phase	7.5
SVM20T10	2 x 2	50 Hz	15	28	136	2900	10	380V, 3 Phase	11
SVM20T14	2 x 2	50 Hz	20	28	192	2900	14	380V, 3 Phase	15
SVM20T17	2 x 2	50 Hz	25	28	234	2900	17	380V, 3 Phase	18.5
SVM45T2	3 x 3	50 Hz	10	55	48	2900	2	380V, 3 Phase	7.5
SVM45T3	3 x 3	50 Hz	15	55	71	2900	3	380V, 3 Phase	11
SVM45T4	3 x 3	50 Hz	20	55	95	2900	4	380V, 3 Phase	15
SVM45T5	3 x 3	50 Hz	25	55	119	2900	5	380V, 3 Phase	18.5
SVM45T6	3 x 3	50 Hz	30	55	143	2900	6	380V, 3 Phase	22

Available on Request

This item can be arranged on request. Availability is subject to supplier and market availability.
