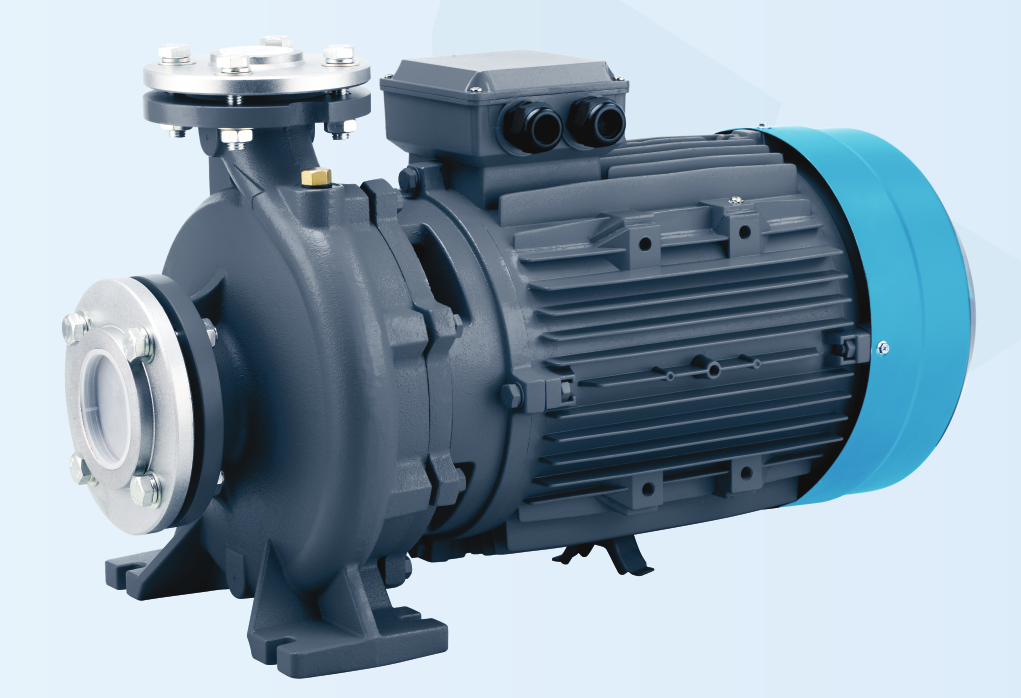

Product image represents this series. Appearance may vary by model or specification.
Star USA
Star USA Big Monoblock Pump
Voltage: 380 V. Frequency: 50 Hz. RPM: 2850.
- Category
- Water Pumps
Available Models / Specifications
| Model Number | Connection | Frequency | Max Discharge | Max Head | Power | RPM | Voltage |
|---|---|---|---|---|---|---|---|
| SCP050A | 2.5” x 2.5” | 50 Hz | 1100 LPM | 26 M | 4 kW / 5.5 HP | 2850 | 380 V |
| SCP075A | 3” x 3” | 50 Hz | 1200 LPM | 34 M | 5.5 kW / 7.5 HP | 2850 | 380 V |
| SCP100A | 3” x 3” | 50 Hz | 1200 LPM | 39 M | 7.5 kW / 10 HP | 2850 | 380 V |
| SCP100 | 2.5” x 2” | 50 Hz | 1200 LPM | 39 M | 7.5 kW / 10 HP | 2850 | 380 V |
| SCP200 | 4” x 3” | 50 Hz | 3250 LPM | 33.5 M | 15 kW / 20 HP | 2850 | 380 V |
| SCP250 | 4” x 3” | 50 Hz | 3750 LPM | 37 M | 18.5 kW / 25 HP | 2850 | 380 V |
| SCP300 | 4” x 3” | 50 Hz | 4000 LPM | 38.5 M | 22 kW / 30 HP | 2850 | 380 V |
Available on Request
This item can be arranged on request. Availability is subject to supplier and market availability.
